The product is suitable for highway, logistics park, public security chokepoint channel vehicle inspection, low radiation dose, easy to operate, through the fast, practical.

伽馬射線源	鈷60（0.8Ci）
探測器	固體探測器
穿透力	≥170mm（鋼板）（空氣背景下，在170mm后面仍可檢測到鉛磚。鮮活農產品車輛滿載時的等效厚度為150mm。）
農產品車輛滿載時的等效厚度	150mm
空間分辨率	≤6mm（空氣背景下可檢測到的最細銅絲直徑）以上2個指標為穿透式檢測系統的重要指標其中，空間分辨率和反差靈敏度決定圖像的清晰程度。）
掃描檢查速度	6～10km/h
環境工作溫度	－20℃～50℃
相對濕度	5％～95％，不結露
通過速度	≤10km/h
電壓和功耗	380V，2KW
車牌識別系統	OCR
系統工作時間	24x7x52（小時），可全天候連續工作

Gamma-ray sources	Cobalt 60 (0.8Ci)
Detector	Solids Detector
Penetrating power	≥170mm(Steel plate) (Lead brick can still be detected behind 170mm in air background. (The equivalent thickness of the fresh produce vehicle when fully loaded is 150mm.)
Equivalent thickness of agricultural vehicles when fully loaded	150mm
Spatial resolution	≤6mm(The finest copper wire diameter that can be detected against an air background) The above 2 indicators are important indicators for penetrating detection systems where spatial resolution and contrast sensitivity determine the clarity of the image.)
Scanning inspection speed	6～10km/h
Ambient working temperature	－20℃～50℃
Relative Humidity	5％～95％，No condensation
By speed	≤10km/h
Voltage and power consumption	380V，2KW
License plate recognition system	OCR
System working time	24x7x52 (hours) for 24/7 continuous operation

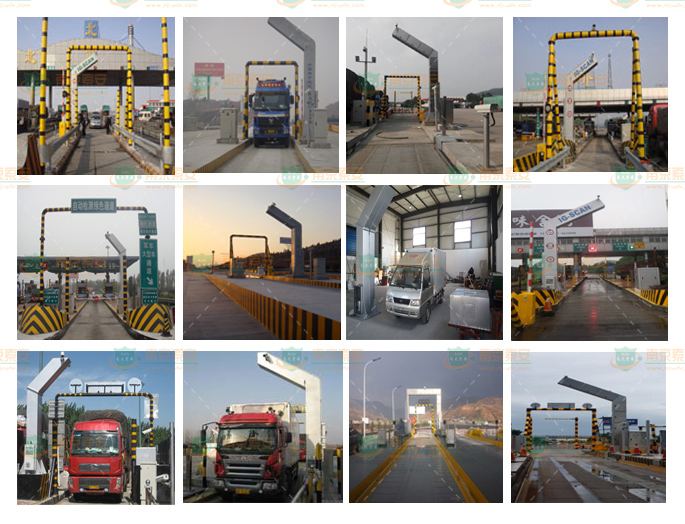

下圖：卡口應用現場

Below: The application site of bayonet

需要方案設計（標底設計）、項目合作、出口合作請與我們聯系

Need scheme design (bid design), project cooperation, export cooperation please contact us
